GE Mark V Series Drive Control Card with 200mm Height 100mm Width and 1 Year Warranty for Turbine Control Systems
| Lugar de origen | EE.UU |
|---|---|
| Nombre de la marca | GE |
| Certificación | COO |
| Número de modelo | DS215GASCG4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) |
| Cantidad de orden mínima | 1 |
| Precio | $1500 |
| Tiempo de entrega | 5-7 días |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 999 |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | GE215GASCG4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) Tarjeta de control de la unidad | ID de producto | DS215GASCG4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) |
|---|---|---|---|
| Serie | Mark V | Peso de la red del producto | 2 kg |
| Profundidad/longitud de la red del producto | 330 mm | Altura de la red de productos | 200 mm |
| Ancho de redes de productos | 100 mm | Garantía | 1 año |
| Resaltar | 200mm Height Drive Control Card,100mm Width Drive Control Board,1 Year Warranty Turbine Control Card |
||
Descripción de producto

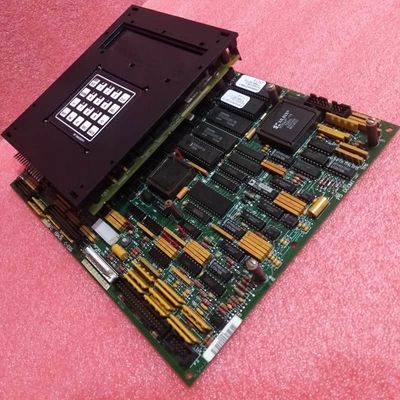

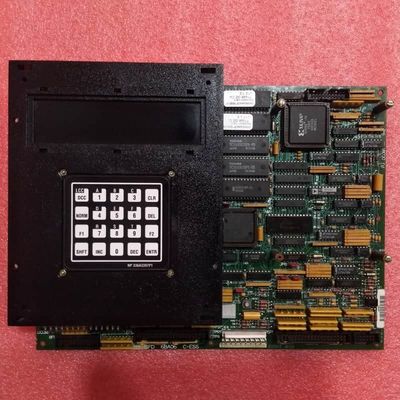

GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) Drive Control Card
Product Overview
The GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) is a core Drive Control Board designed for industrial drive systems, likely integrated with GE's Mark V Turbine Control System. This advanced control card features three specialized microprocessors:
- Drive Control Processor (DCP): Manages system-level tasks including chip select decoding, direct memory access (DMA), and interrupt control
- Motor Control Processor (MCP): Handles motor-specific functions
- Co-Motor Processor (CMP): Processes math-intensive tasks beyond the MCP's capability
Key Features
- Expandable Functionality: Supports optional LAN and signal processor cards for diverse communication and signal processing needs
- Intuitive Diagnostics: 10-LED front panel with BCD/binary fault coding enables quick issue identification
- Configurable Hardware: Factory-set JP/WJ jumpers ensure compatibility with flexibility for user adjustments
- Robust Design: Shared RAM allows simultaneous multi-processor access for efficient operation
- Secure Installation: Includes standoffs, nylon washer compatibility, and EPROM transfer guidelines
Installation & Maintenance
For safe installation/replacement:
- Disconnect all power sources before installation to prevent electrocution
- Remove cables from auxiliary cards and securing screws before board removal
- Transfer EPROM modules from defective board to replacement unit
- Use factory nylon washers to prevent screw damage during reassembly
- Ensure plastic holders are properly tightened
Note: All specifications and features are subject to change without notice. Always refer to the manufacturer's documentation for the most current information.
