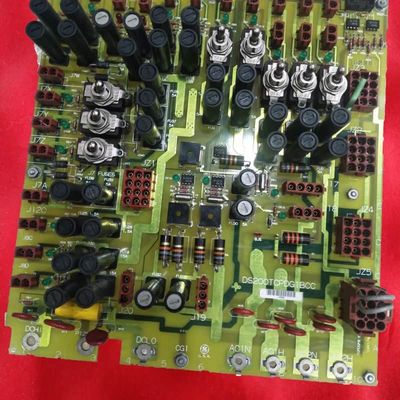

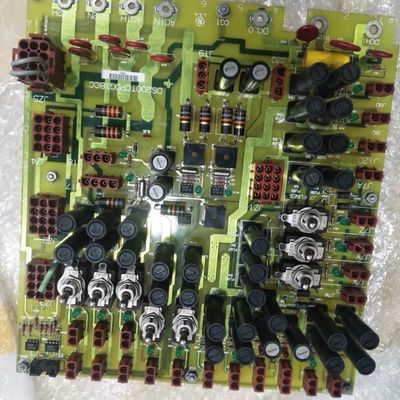

GE DS200TCPDG1BCC 125 VDC Power Distribution Module with Independent Core Control and Comprehensive Status Monitoring for Mark V Turbine Control
| Lugar de origen | EE. UU. |
|---|---|
| Nombre de la marca | GE |
| Número de modelo | DS200TCPDG1BCC |
| Cantidad de orden mínima | 1 por ciento |
| Precio | $2000 |
| Detalles de empaquetado | Fábrica nueva y original, embalaje de caja individual |
| Tiempo de entrega | 5-7 días |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 999pcs |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | GE DS200TCPDG1B DS200TCPDG1BCC Módulo de distribución de energía | ID de producto | DS200TCPDG1BCC |
|---|---|---|---|
| Serie | Mark V | Función | Paquete de salida discreta |
| Profundidad/longitud de la red del producto | 330 mm | Altura de la red de productos | 200 mm |
| Ancho de redes de productos | 100 mm | Peso de la red del producto | 2 kg |
| Garantía | 1 año | ||
| Resaltar | 125 VDC Power Distribution Module,Independent Core Control Power Distribution Module,Comprehensive Status Monitoring Power Distribution Module |
||
Descripción de producto
GE DS200TCPDG1B DS200TCPDG1BCC Power Distribution Module
Product Details:
The DS200TCPDG1BCC is a Power Distribution Board designed for General Electric's Mark V Speedtronic Turbine Control System. Housed within the system's <PD> (Power Distribution) core, its primary function is to manage and distribute 125 VDC power to the TCPS boards across all I/O cores and the central control engine, as well as to the TCEA boards in the <P1> core. As a hardware-based module with three product revisions, it operates without software configuration, playing a critical role in the reliable operation of industrial gas and steam turbines.
Key Features:
Core Power Management:The board centrally distributes 125 VDC power to critical system components, including TCPS boards in every I/O and control engine core, ensuring stable and reliable operation for the entire turbine control system.
Independent Core Control:It is equipped with eight toggle switches on its surface, allowing operators to power down each core independently for maintenance, troubleshooting, or safety purposes without affecting the entire system.
Comprehensive Status Monitoring:Featuring over twenty LED indicators, the board provides extensive visual feedback on power status and distribution health, enabling quick assessment of the system's operational condition at a glance.
Extensive System Interfacing:The board utilizes a high number of connectors (including J1R, J7W, J8A, J12A, etc.) for comprehensive interfacing within the Mark V system, ensuring robust electrical connections for power distribution, although some connectors like J15 and J16 are typically unused.

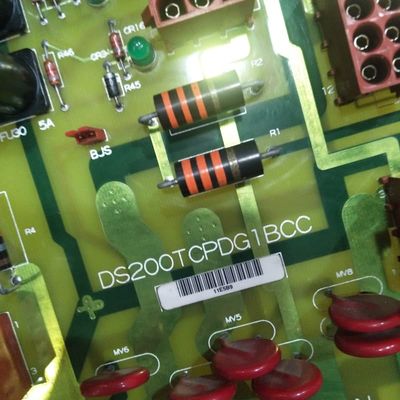

Hardware Configuration Capability:While it lacks software configuration, the board includes a BJS jumper for hardware-based configuration, specifically designed to isolate the ground reference in systems that utilize an external reference, enhancing electrical safety and compatibility.
