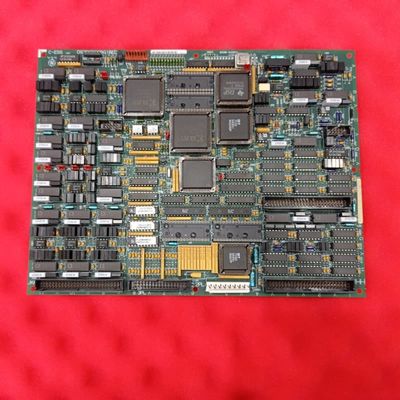

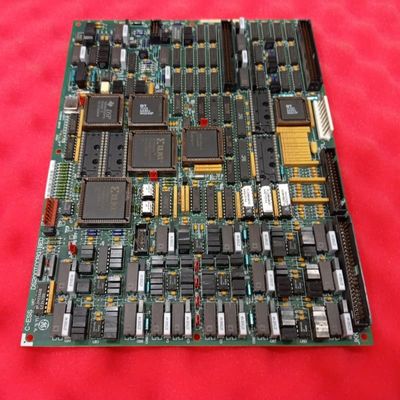

GE DS200GDPAG1ALF High Frequency Power Supply Board with 600-700 Watts Output and 27 kHz Inverter for Dual-Input Flexibility
| Lugar de origen | EE.UU |
|---|---|
| Nombre de la marca | GE |
| Certificación | COO |
| Número de modelo | Ds200gdpag1alf |
| Cantidad de orden mínima | 1 |
| Precio | $1000 |
| Tiempo de entrega | 5-7 días |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 999 |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | GE DS200GDPAG1 CABLERA DE SUMINISTRO DE ALTURA DE ALTA DE ALTA | ID de producto | Ds200gdpag1alf |
|---|---|---|---|
| Serie | Mark V | Ancho de redes de productos | 100 mm |
| Profundidad/longitud de la red del producto | 330 mm | Altura de la red de productos | 200 mm |
| Peso de la red del producto | 2 kg | Garantía | 1 año |
| Resaltar | 600-700 Watts Power Supply Board,27 kHz Inverter Power Supply Board,Dual-Input Flexibility High Frequency Power Supply Board |
||
Descripción de producto
GE DS200FHVAG1ABA Current Sensing Feedback Board
Product Description:
The GE DS200GDPAG1ALF is a High Frequency Power Supply Board designed exclusively for GE’s EX2000 excitation system, delivering a power output of 600–700 watts. Its core advantage lies in dual-input flexibility: it can draw power from both alternating current (AC) and direct current (DC) sources, adapting to diverse operational environments in excitation system setups.
Equipped with a suite of specialized components to ensure stable power conversion and distribution, the board includes: an input rectifier and filter, a buck chopper regulator, a 27 kHz inverter, an output transformer, a 120 V DC power supply, a dedicated control power supply, control signal level circuits, and protective circuits. It also features intuitive LED/neon indicators for status monitoring: PWR IN, READY, 120 V DC FUSE, and HI VOLT SHORT.
For integration and maintenance, it offers 12 plug connectors + 2 stab-on connectors for versatile external connections, three grounding screws, integrated fuses, and test points.
Key Features:
Dual-Input Flexibility: Accepts both AC and DC input power, eliminating reliance on a single power source and adapting to varying operational conditions in EX2000 excitation systems.
Comprehensive Power Conversion Chain: Combines rectifier/filter, buck chopper, 27 kHz inverter, and transformers to convert, regulate, and distribute power — covering all critical power needs of the excitation system.
Multi-Layered Protection: Integrates protective circuits and fuses, plus a dedicated HI VOLT SHORT indicator (N1) — safeguarding the board and connected EX2000 components from electrical damage.
Intuitive Status Monitoring: LED/neon indicators provide real-time visual feedback on power input, operational readiness, fuse status, and fault conditions — simplifying quick checks and troubleshooting.
Versatile Connectivity & Grounding: 14 total connectors enable seamless integration with external subsystems; three grounding screws ensure safe charge dissipation, reducing electrical hazards and enhancing system stability.
Maintenance-Friendly Design: Built-in test points allow easy access to key signals/voltages for diagnostics, while standardized connectors and clear grounding design streamline installation and repair in industrial settings.
