GE DS200SLCCG3AEG LAN Communication Card 330mm x 200mm x 100mm
| Lugar de origen | A NOSOTROS |
|---|---|
| Nombre de la marca | GE |
| Certificación | COO |
| Número de modelo | DS200SLCCG3AEG |
| Cantidad de orden mínima | 1 por ciento |
| Precio | $1900 |
| Detalles de empaquetado | Fábrica nueva y original, embalaje de caja individual |
| Tiempo de entrega | 5-7 días |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 999pcs |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | Tarjeta de comunicación LAN GE DS200SLCCG3AEG | ID de producto | DS200SLCCG3AEG |
|---|---|---|---|
| Serie | Tablero de viaje primario específico de turbina | Función | Panel de control por servo |
| Profundidad/longitud de la red del producto | 330 mm | Altura de la red de productos | 200 mm |
| Ancho de redes de productos | 100 mm | Peso de la red del producto | 2 kg |
| Garantía | 1 año | ||
| Resaltar | GE DS200SLCCG3AEG LAN card,GE turbine control communication card,LAN communication card with warranty |
||
Descripción de producto

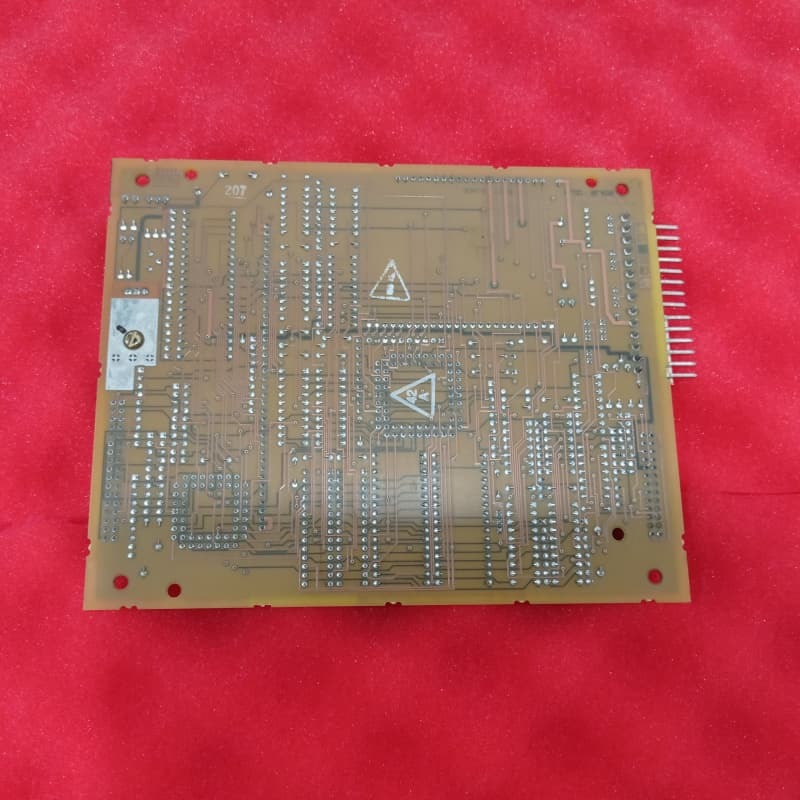

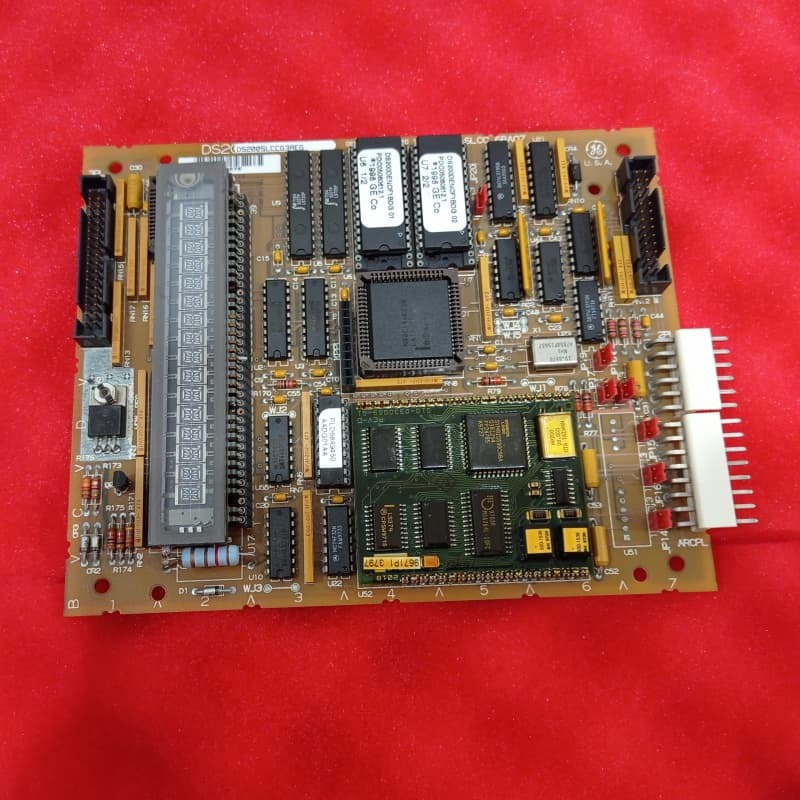

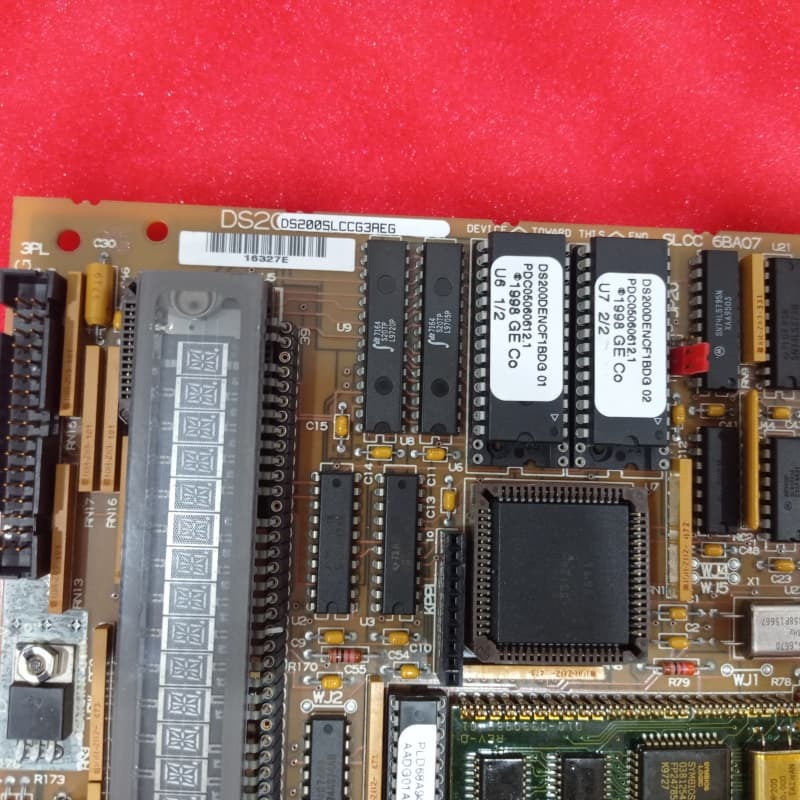

GE DS200SLCCG3AEG LAN Communication Card
Product Details:
The GE DS200SLCCG3AEG is a LAN (Local Area Network) Communication Board belonging to GE’s Mark V Turbine Control System—a legacy series now obsolete due to manufacturing discontinuation post-launch, but notable as one of the final GE Mark lines to integrate patented Speedtronic control technology. Designed for wind, steam, and gas turbine drive control systems, it is a revised variant of the original DS200SLCCG3 parent board, incorporating an A-rated functional revision that distinguishes it from the base model.
Functionally, it serves as a universal LAN interface for a wide range of GE drives and exciters, providing both isolated and non-isolated communication circuits to process incoming/outgoing LAN signals. At its core is a LAN Control Processor, whose software is stored in two replaceable EPROMs; it also includes dedicated LCP RAM and dual-ported RAM for seamless communication with the Drive Control Processor on the DS215SDCC Drive Control Card via the 3PL connector. It connects to other key boards through a 2PL connector and features an attachable programmer module with a 16-position alphanumeric display and keypad—enabling users to adjust software settings, perform diagnostic tests, and read fault codes.
Key Features:
Dual-System Compatibility: Works with GE’s Mark V Turbine Control System and EX2000 gas turbine control systems, leveraging Speedtronic technology for reliable turbine drive communication.
Dual-Circuit Communication: Offers both isolated and non-isolated circuits, ensuring signal integrity across diverse drive/exciter setups.
Integrated Processing & Memory: LCP (U1) with replaceable EPROMs (software storage) and dedicated RAM ensures smooth LAN signal processing; dual-ported RAM enables seamless data exchange with the DCP.
User-Friendly Diagnostics: Attachable programmer module with alphanumeric display and keypad simplifies software adjustments, diagnostics, and fault code reading.
