GE IS2020RKPSG2A VME Rack Power Supply Module 400W Mark VI
| Lugar de origen | A NOSOTROS |
|---|---|
| Nombre de la marca | GE |
| Número de modelo | IS2020RKPSG2A |
| Cantidad de orden mínima | 1 por ciento |
| Precio | $7000 |
| Detalles de empaquetado | Fábrica nueva y original, embalaje de caja individual |
| Tiempo de entrega | 5-7 días |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 999pcs |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | GE IS2020RKPSG2A Módulo de fuente de alimentación VME VME | ID de producto | IS2020RKPSG2A |
|---|---|---|---|
| Serie | Marcos VI | Función | Tabla de terminales de entrada |
| Profundidad/longitud de la red del producto | 330 mm | Altura de la red de productos | 200 mm |
| Ancho de redes de productos | 100 mm | Peso de la red del producto | 2 kg |
| Garantía | 1 año | ||
| Resaltar | GE VME rack power supply module,400W Mark VI power supply,GE turbine control power module |
||
Descripción de producto
GE IS2020RKPSG2A VME Rack Power Supply Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS2020RKPSG2A VME Rack Power Supply Module |
| Product ID | IS2020RKPSG2A |
| Series | Mark VI |
| Function | Input Terminal Board |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS2020RKPSG2A is a VME Rack Power Supply Module belonging to the Mark VI Series, integral to GE’s Speedtronic gas turbine control systems. As a standalone, 400W power supply, it mounts on the right-hand side of VME control/interface racks via a sheet metal bracket, delivering critical DC voltages to the VME backplane and an optional 335V DC output for flame detectors. It supports two input voltages: 125V DC and a low-24V DC version, and serves as a direct replacement for the older RKPSG1.

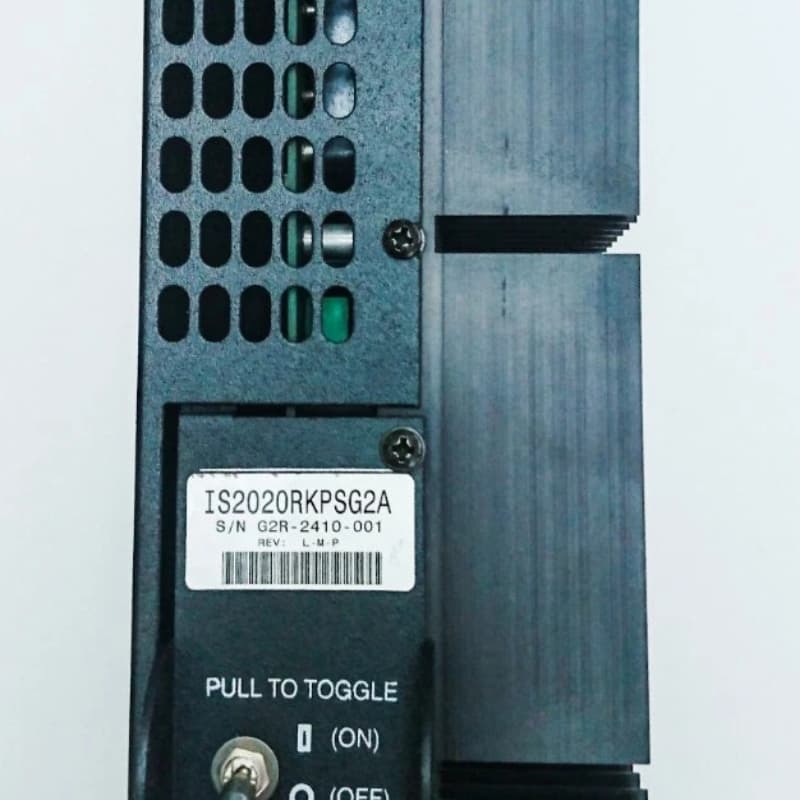

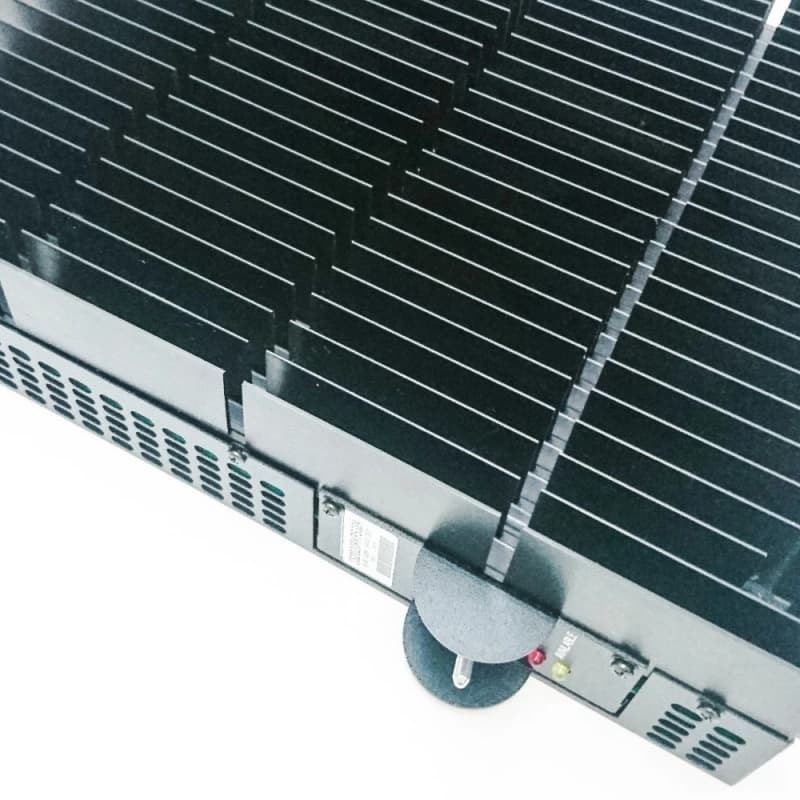

Equipped with a front-panel locking power switch and three status LEDs, it simplifies monitoring and troubleshooting. Key connections include top-mounted PSA/PSB and bottom-mounted PS125/PS24, PS335, PS28, and PSSTAT connectors. Its design features side-mounted metal fins as a heat sink and a front faceplate labeling revision/serial numbers for easy reference, aligning with Mark VI’s legacy of Speedtronic technology.
Key Features
Voltage Supply & Versatility: Delivers +5V, ±12V, ±15V, ±28V to the VME backplane; optional 335V DC for flame detectors. Supports 125V/24V DC inputs, adapting to diverse industrial power setups.
User-Friendly Operation: Front-panel locking power switch controls outputs and resets faults; three LEDs provide clear status: input power (yellow), fault (red), normal (green). Faults clear only if the root cause is resolved.

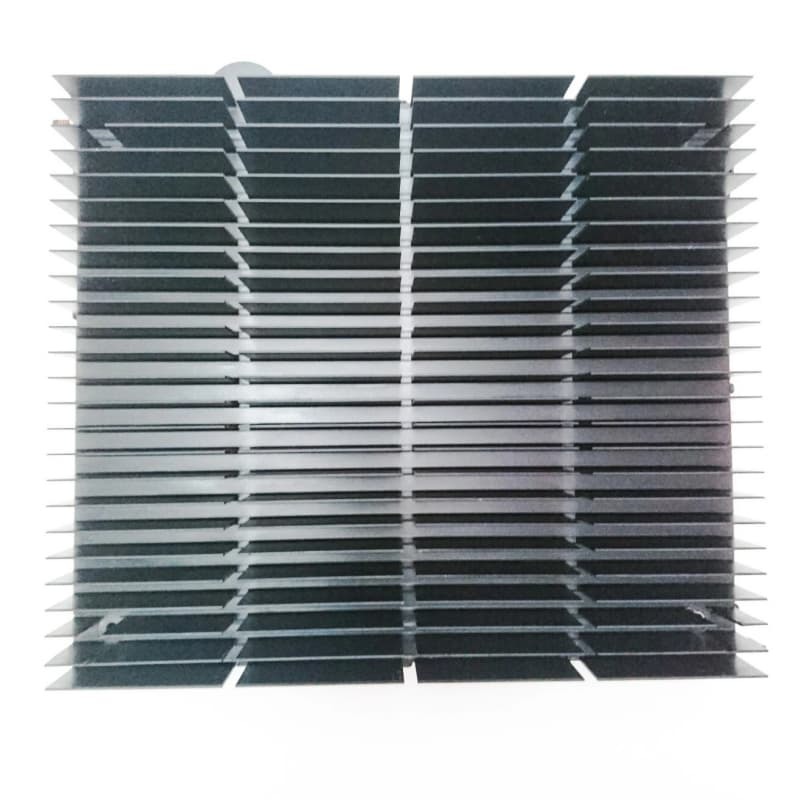

Rugged Design: Standalone module with side-mounted metal fin heat sinks for thermal management; sheet metal bracket mounting ensures stability in VME racks.
Configuration Flexibility: Powers external peripherals via P28C/PS28 outputs by switching a left-side jumper from “Normal” to “Isolated.” 5V output has a special current limit: undervoltage (UV) triggers shutdown of all other outputs until 5V recovers.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
