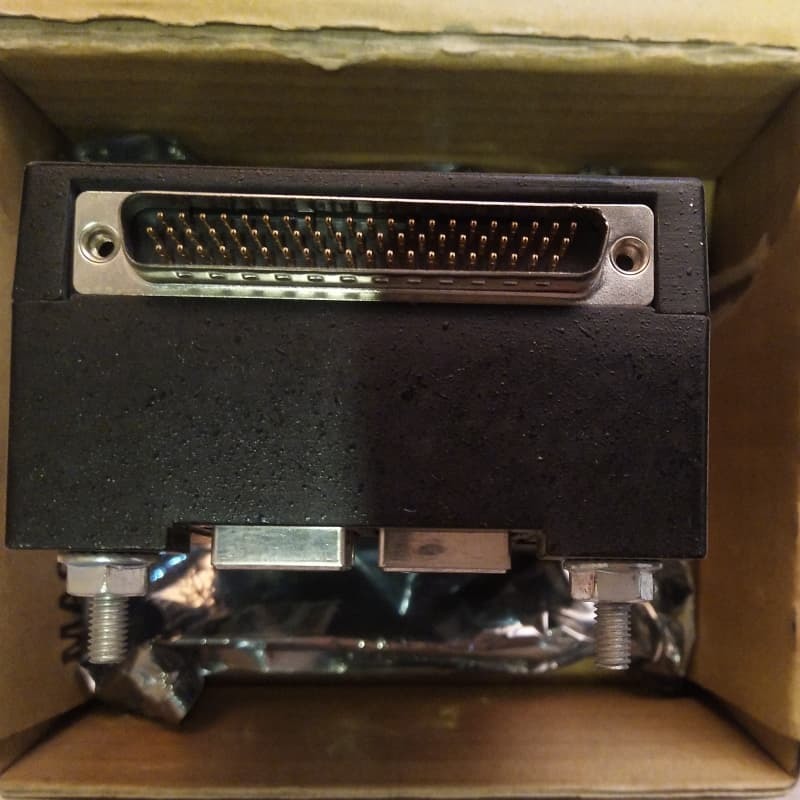

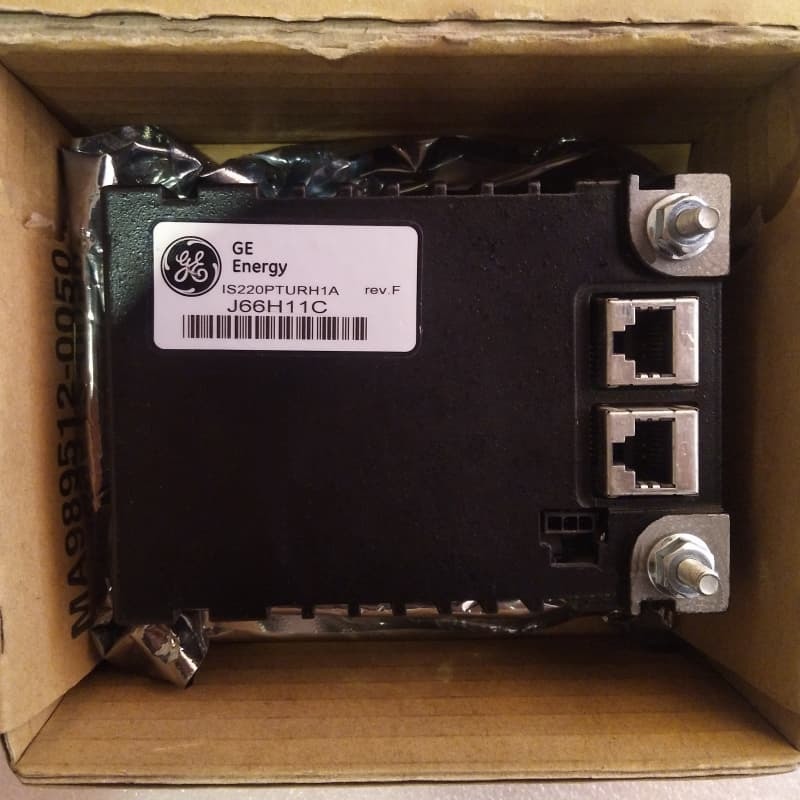

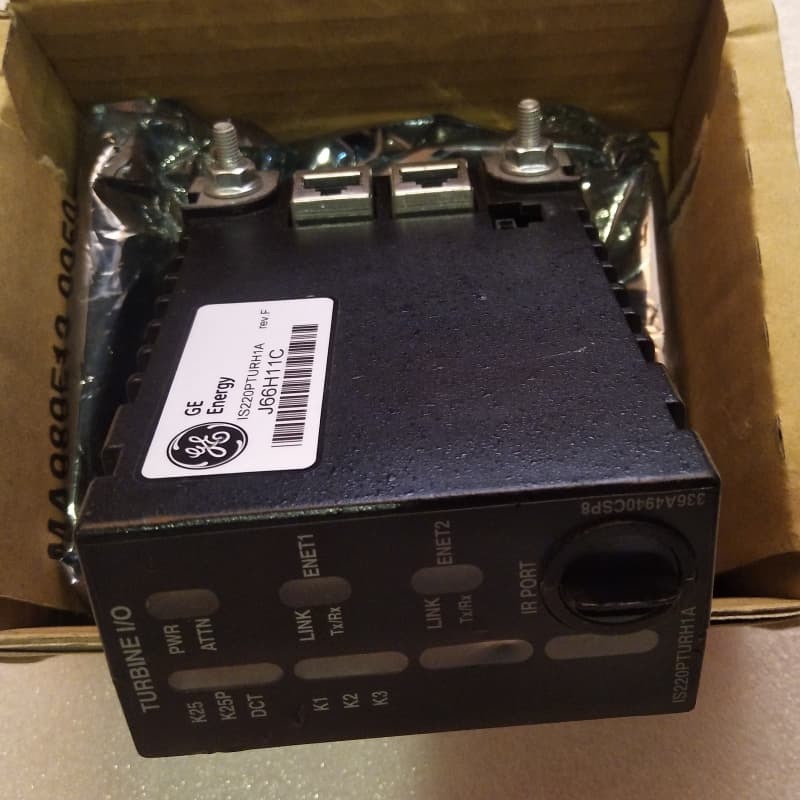

GE IS220PTURH1A Turbine Protection Pack for Speedtronic Mark VIe
| Place of Origin | US |
|---|---|
| Nombre de la marca | GE |
| Certificación | COO |
| Model Number | IS220PTURH1A |
| Minimum Order Quantity | 1pc |
| Precio | $5800 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Name | GE IS220PTURH1A Primary Turbine Protection Pack | Product ID | IS220PTURH1A |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Discrete Output Module |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Resaltar | GE Speedtronic Mark VIe turbine pack,turbine protection pack with warranty,GE IS220PTURH1A control module |
||
Descripción de producto
GE IS220PTURH1A Primary Turbine Protection Pack
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PTURH1A Primary Turbine Protection Pack |
| Product ID | IS220PTURH1A |
| Series | Turbine Specific Primary Trip Board |
| Function | Discrete Output Module |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS220PTURH1A is a Primary Turbine Specific Primary Trip Pack, a critical component of the Speedtronic Mark VIe gas turbine control system. This module serves as the electrical interface between turbine control terminal boards and Ethernet networks, ensuring reliable turbine operation in industrial environments.
Key Features
- Turbine Control Focus: Features four passive magnetic speed inputs capable of detecting down to 2-RPM turning gear speed for comprehensive turbine status monitoring
- Advanced Connectivity: Equipped with dual 10/100 Ethernet ports, flash memory, RAM, and an ID chip for seamless integration
- Smart Configuration: Supports automatic download of baseload, bootloader, firmware, and settings from the controller
- Robust Construction: Housed in a durable black shell with air vents for optimal thermal management
- Reliable Support: Available as new or rebuilt units with warranty options up to 24 months
Technical Details
The module contains a CPU board, turbine-specific control board, and analog acquisition auxiliary board. Front-facing LEDs provide operational status visibility, while the unit mounts securely on the TTURH1C terminal board. The system uses median speed signals for both control functions and primary overspeed trip protection.
Support & Availability
This turbine protection pack is available as new or factory-rebuilt units. Repair services come with a 12-month warranty, while new units include 24-month coverage, ensuring long-term reliability for your industrial turbine operations.
