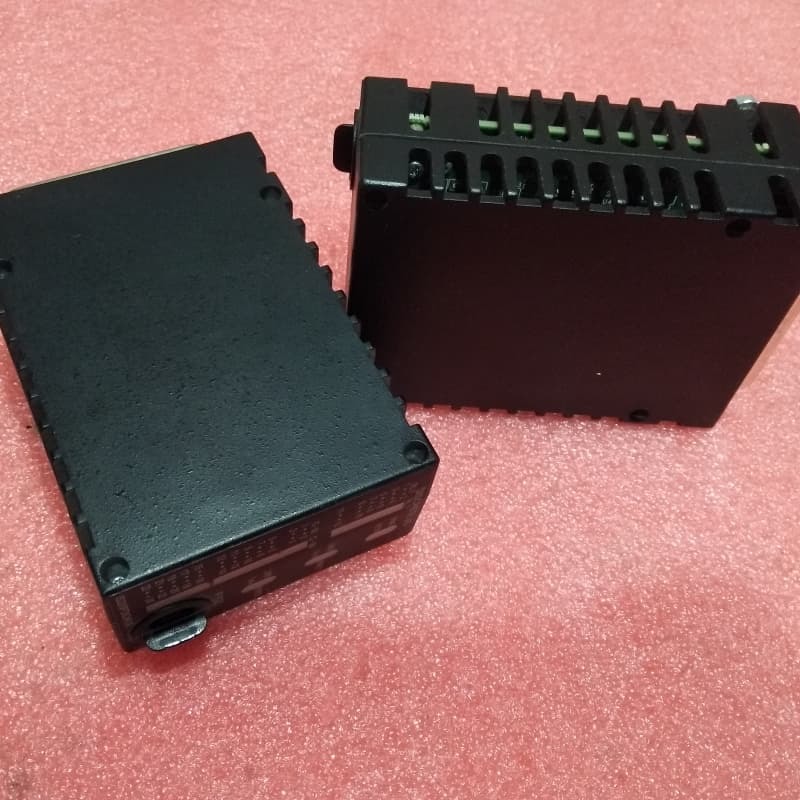

GE IS220PDOAH1A Proportional Digital Output Module Mark VI
| Place of Origin | USA |
|---|---|
| Nombre de la marca | GE |
| Certificación | COO |
| Model Number | IS220PDOAH1A |
| Minimum Order Quantity | 1 |
| Precio | $5800 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Name | GE IS220PDOAH1A Proportional Digital Output Module | Product ID | IS220PDOAH1A |
|---|---|---|---|
| Series | Mark VI | Product Net Width | 100mm |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Warranty | 1 Year | Product Net Weight | 2kg |
| Resaltar | GE Mark VI digital output module,turbine control proportional module,GE IS220PDOAH1A output module |
||
Descripción de producto
GE IS220PDOAH1A Proportional Digital Output Module
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PDOAH1A Proportional Digital Output Module |
| Product ID | IS220PDOAH1A |
| Series | Mark VI |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Warranty | 1 Year |
| Product Net Weight | 2kg |
Product Overview
The GE IS220PDOAH1A is a Proportional Digital Output Module, a key component in GE's Mark VIe Series for distributed gas turbine control systems. It serves as an electrical interface between 1-2 I/O Ethernet networks and discrete output terminal boards, integrating a common Mark VIe processor board and a discrete output-specific acquisition board.
Key Features
- Relay Control: Manages up to 12 relays, compatible with electromagnetic and solid-state types
- Flexible Configurations: Supports simplex, dual, and TMR setups, adapting to diverse system redundancy needs
- Easy Installation: Plugs directly into terminal boards with threaded studs for secure connection
- Robust Communication: Dual 10/100 Ethernet ports with DHCP for network addressing
- Processor & Safety Features: High-speed processor with flash/RAM, hardware watchdog, and ambient temperature sensor
- Diagnostics: LED status indicators and infrared serial port for real-time monitoring
Technical Details
Communication occurs via dual RJ45 Ethernet ports, with power supplied through a three-pin connector, and outputs routed via a DC-37 pin connector to terminal boards. The module includes LED indicators and an infrared port for visual and serial diagnostics.
