GE IS215VAMBH1A Acoustic Monitoring Board for Mark VI Turbine
| Place of Origin | US |
|---|---|
| Nombre de la marca | GE |
| Model Number | IS215VAMBH1A(IS200VSPAH1ACC) |
| Minimum Order Quantity | 1pc |
| Precio | $5000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Name | GE IS215VAMBH1A(IS200VSPAH1ACC) Acoustic Monitoring Board | Product ID | IS215VAMBH1A(IS200VSPAH1ACC) |
|---|---|---|---|
| Series | Mark VI | Function | Vibration Monitor Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Resaltar | GE Mark VI turbine acoustic board,GE turbine control monitoring board,IS215VAMBH1A acoustic monitoring module |
||
Descripción de producto

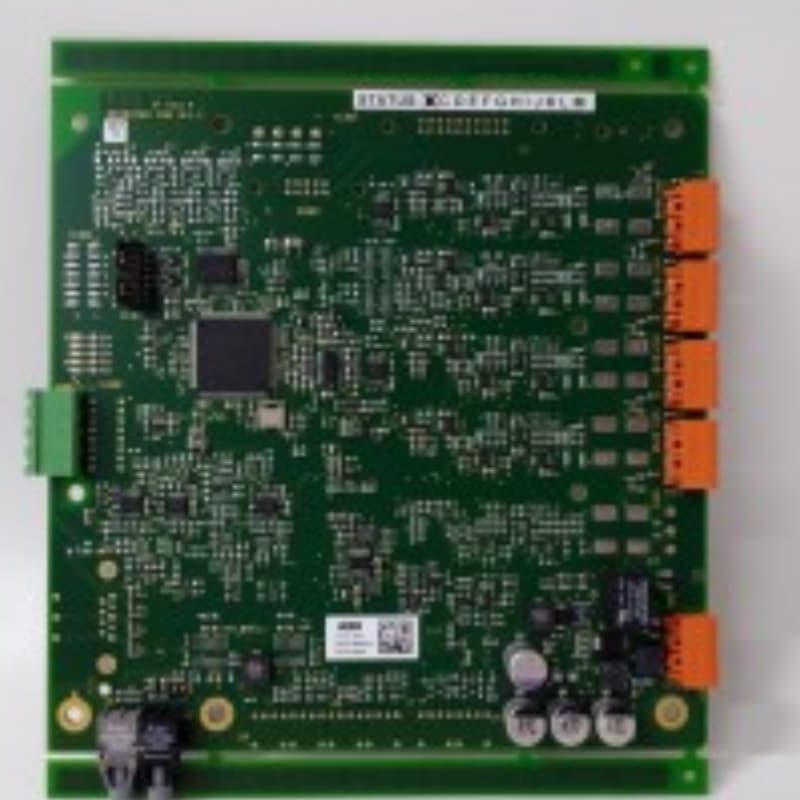

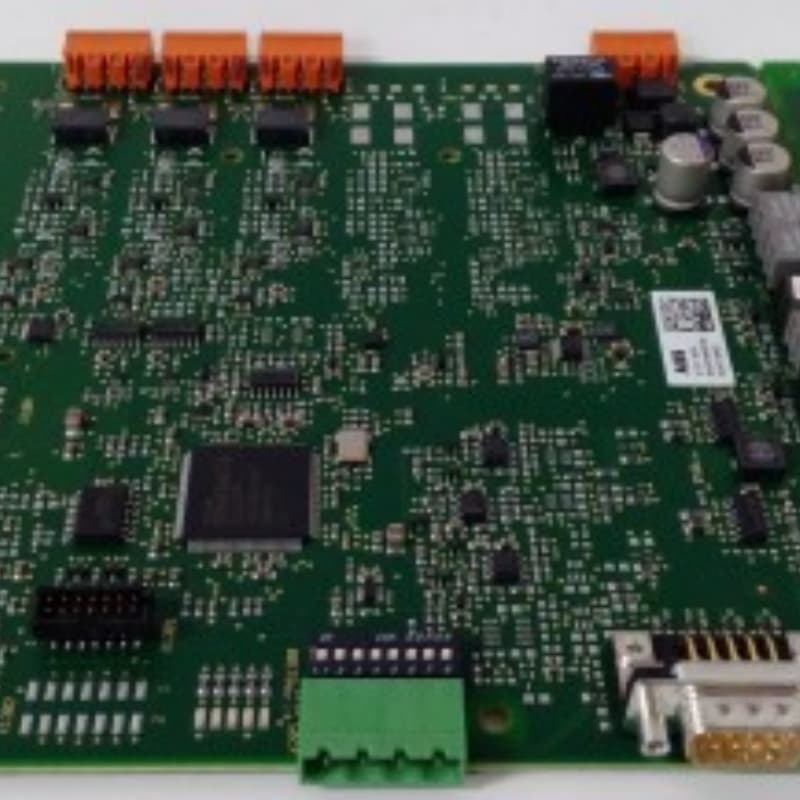

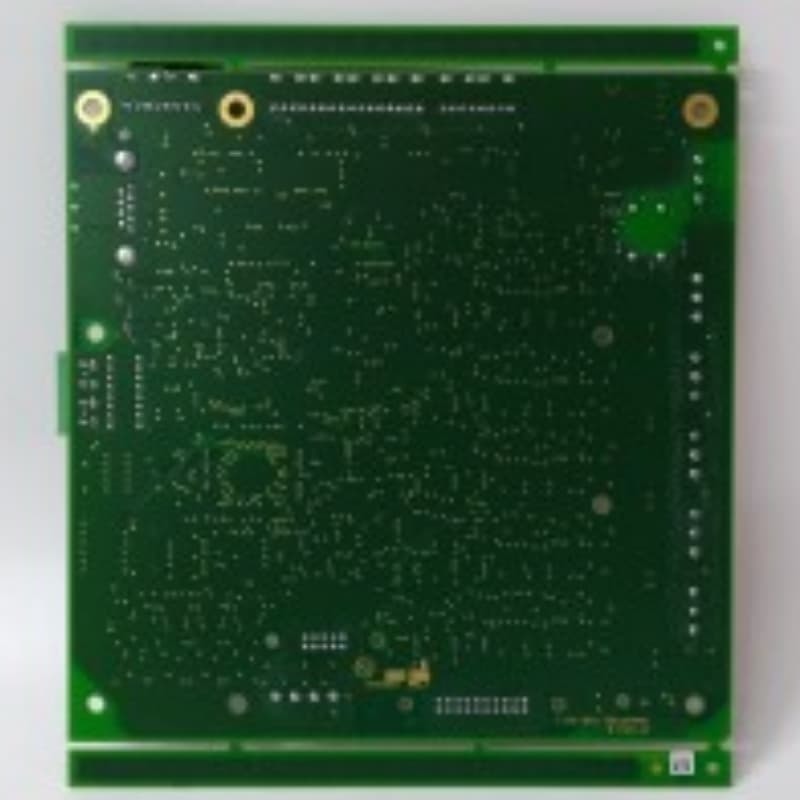

GE IS215VAMBH1A(IS200VSPAH1ACC) Acoustic Monitoring Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215VAMBH1A(IS200VSPAH1ACC) Acoustic Monitoring Board |
| Product ID | IS215VAMBH1A(IS200VSPAH1ACC) |
| Series | Mark VI |
| Function | Vibration Monitor Board |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS215VAMBH1A(IS200VSPAH1ACC) is an Acoustic Monitoring Board designed for the Mark VI Speedtronic system, providing comprehensive gas turbine acoustic monitoring capabilities.
Key Features
- 18-channel monitoring: Processes acoustic signals with TAMB terminal boards for large gas turbine applications
- Advanced diagnostics: High-impedance DC bias detects open connections between TAMB boards and charge amplifiers
- Configurable signals: Adjustable gain and A/D auto-calibration ensure precise measurements
- Visual indicators: Three status LEDs provide clear operational state information
- System integration: Compatible with Mark VI's TMR architecture with 40ms frame rate updates
- Industrial durability: Robust hardware design with Xilinx FPGAs for stable performance in demanding environments
- Output options: Each channel provides buffered BNC output for flexible connectivity
